DF.17-100A Pneumatic piston pushing tool

• Pneumatic cylinder for retracting and rotating the piston.
• Can be used on clockwise and anti-clockwise pistons.
• Max pressure 6.2 bars 1/4 NPT. Ø 10 mm 3/8″.
Including:
– 1 pneumati ool DF.17.
– 9 cups: DF.6-2A, DF.6-3A, DF.6-4A, DF.6-5, DF.6-8, DF.6-9,DF.6-14, DF.6-15, DF.6-16.
Examples of allocation:
• DF.6-2A: Ford Focus – Renault Megane III – Volkswagen Touran…
• DF.6-3A: Alfa Romeo Mito – Audi A3 – Citroën C3, C4, C5, Picasso, DS3,Ford Focus –
Opel Astra – Peugeot 308, 3008, 508, 5008, 607, Renault Megane III -Volkwagen
Golf V and 6, Polo…
• DF.6-4A: CitROËN C5 – Ford C-Max, Focus – Renault Espace, Laguna, Megane III…
• DF.6-5: BMW Series 7 – Honda Accord – Mercedes Class B – Toyota Land Cruiser…
• DF.6-8: Honda CRZ – Hyundai IX20, I10 – Mini Cooper -Renault Clio III, Megane III,
Twingo – Suzuki Swift – Toyota Prius…
• DF.6-9: Mini Cooper – Toyota Auris.
• DF.6-14: Iveco Daily.
• DF.6-15: Renault Scenic, Laguna.
• DF.6-16: Renault Master 3 phase I.

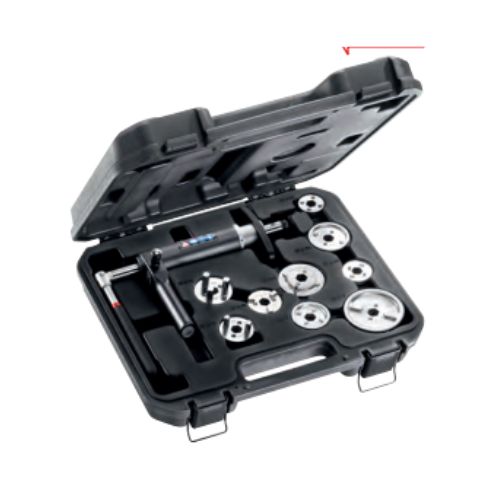

• Supplied in a plastic case with operating instructions and application guide.
