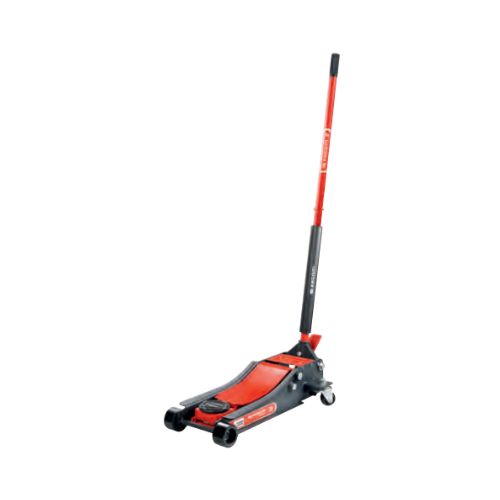

DL.15AL 1.5 t aluminium rolling jack

Categories: Facom, FACOM EQUIPMENT Tag: FACOM

₹50,661 + Taxes

Excluding Delivery
Material Dispatch Subjected to Avaliability

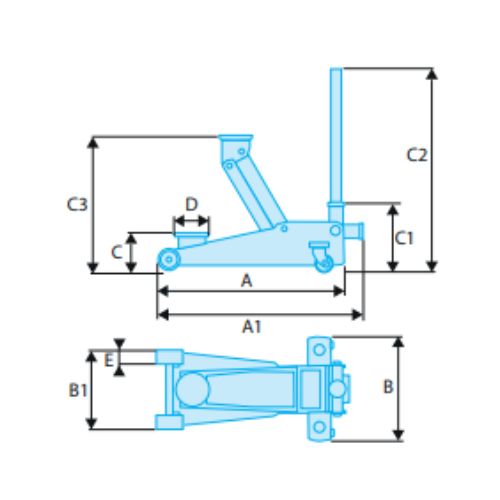

Technical Data Sheet

Weight	30 kg
A [mm]	487
A1 [mm]	553
B [mm]	248
B1 [mm]	115
C [mm]	90
C1 [mm]	132
C2 [mm]	1082
C3 [mm]	360
Oil Capacity [cm³]	80
Tonnes [t]	1.5

Product Information

• Load capacity: 1.5 t.
• Maximum lifting height: 360 mm
• Minimum height under body: 90 mm.
• Double piston for fast lifting.
• Side handle for easier carrying and installation.
• Tube fitted with protection foam.
• Supplied with steel / rubber under-body bearing plate.
• Overload valve.
• Dimensions (L. x W x H.): 487 x 246 x 132 mm.
• EC standard EN1494+A1.
