DL.2LP 2T gearbox & engine support trolley jack

Categories: , , Tag:

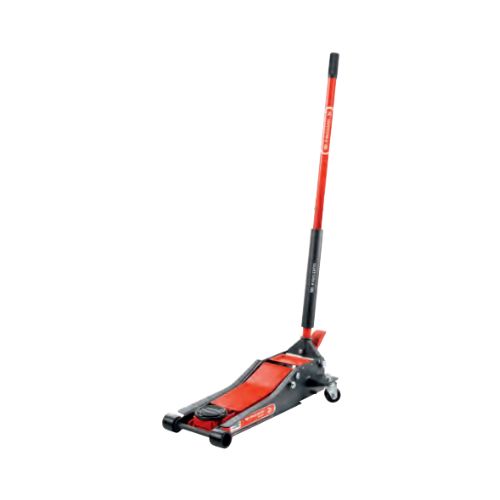

DL.2LP 2T gearbox & engine support trolley jack

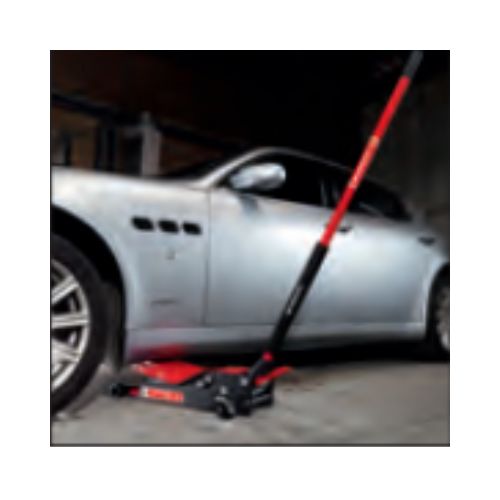

DL.2LP 2T gearbox & engine support trolley jack - Image 2
DL.2LP 2T gearbox & engine support trolley jack - Image 3

₹58,466 + Taxes

  • Excluding Delivery
  • Material Dispatch Subjected to Avaliability
Product Information

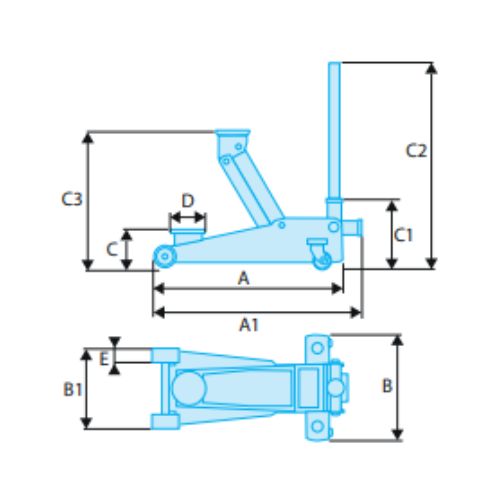

Technical Data Sheet
Weight 32.5 kg
Dimensions 67.5 cm
A [mm]

675
A1 [mm]

762
B [mm]

350
B1 [mm]

262
C [mm]

75
C1 [mm]

215
C2 [mm]

1305
C3 [mm]

505
D [mm]

108
E [mm]

53
Width l [mm]

350
Tonnes [t]

2

• Ideal for distributions and for low ground clearance vehicles, or fitted with rocker
panel protections.
• Lifting capacity: 2 t.
• Maximum lift: 505 mm
• Minimum under-body height: 75 mm.
• Quick lift double piston mechanism.
• Load descent rate regulation.
• Supplied with steel / rubber under-body bearing plate.
• Silent-running polyurethane-tired wheels.
• EC standard EN1494-ASME-PASE.
