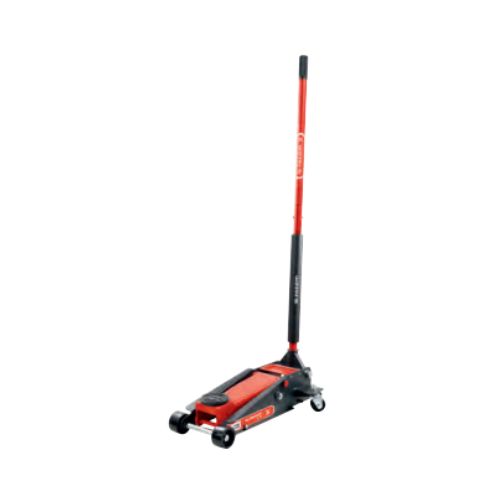

DL.32A 3T mutil purpose car and LCV floor jack

Name: DL.32A 3T mutil purpose car and LCV floor jack
SKU: 26505
Availability: InStock

Categories: AUTOMOTIVE, HEAVY-DUTY TROLLEY JACKS, MOBILE LIFTING EQUIPMENT Tag: FACOM

DL.32A 3T mutil purpose car and LCV floor jack - Image 2

DL.32A 3T mutil purpose car and LCV floor jack - Image 3

Prices Inclusive of all taxes

₹37,762 + Taxes

Excluding Delivery
Material Dispatch Subjected to Avaliability

Product Information

Technical Data Sheet

Product Information

Weight	30.5 kg
Dimensions	69 cm

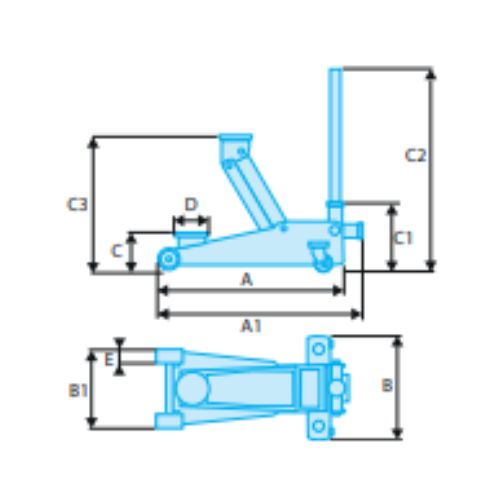

A [mm]	615
A1 [mm]	680
B [mm]	344
B1 [mm]	255
C [mm]	133
C1 [mm]	220
C2 [mm]	1305
C3 [mm]	465
D [mm]	108
E [mm]	48
H [mm]	163
Width l [mm]	337
Tonnes [t]	2

Technical Data Sheet

• Force: 3 t.
• Maximum lift: 465 mm
• Minimum under-body clearance: 133 mm.
• Quick-lift device brings jack into contact
in a single movement.
• Under-body rubber plate.
• Tube fitted with protection foam.
• Silent-running polyurethane-tired wheels.
• Overload valve.
• Dimensions (L. x W x H.): 690 x 337 x 163 mm.
• EC standard EN1494-ASME-PASE.
