TC-110J Tank Cleaning Machine

Name: TC-110J Tank Cleaning Machine
SKU: 27863
Availability: InStock

Categories: Brands, Tank Cleaning Machine, TERYAIR Tag: TERYAIR

₹172,310 + Taxes

Excluding Delivery
Material Dispatch Subjected to Avaliability

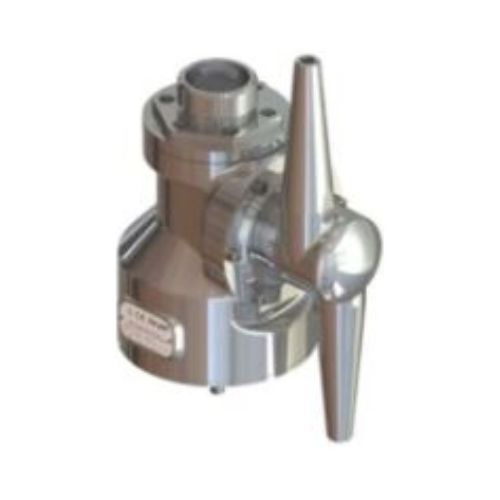

These are twin nozzle tank washing machines. They have a Stainless Steel 316L construction combined with PEEK gears for durability and chemical resistivity. The two opposing nozzles continuously rotate in two axes and complete a complete cleaning cycle in 20 minutes

Suitable for use with various cleaning media including water, crude oil and cleaning chemicals, both hot and cold. Its easily repairable on site and teryair spares are widely available.

Product Information

Technical Data Sheet

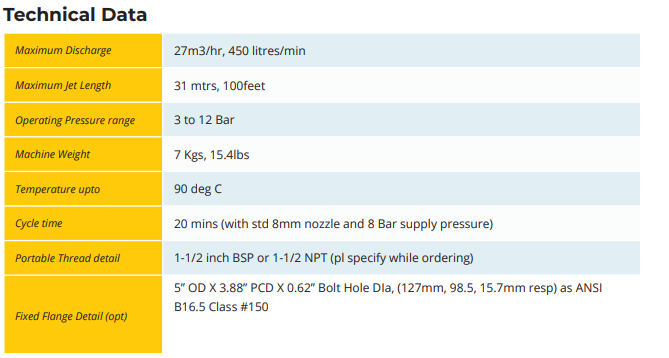

Product Information

Maximum Discharge	27 m3/hr (450 litres/min)
Maximum Jet Length	31 meters (100 feet)
Operating Pressure Range	3 to 12 bar
Machine Weight	7 kgs (15.4 lbs)
Temperature upto	90 deg C (194 deg F)
Cycle time	20 mins (with std 8mm nozzle and 8 Bar supply pressure)
Portable Thread detail	1-1/2 inch BSP or 1-1/2 NPT (pl specify while ordering)
Fixed Flange Detail (opt)	5” OD X 3.88” PCD X 0.62” Bolt Hole Dia, (127mm, 98.5, 15.7mm resp) as ANSI B16.5 Class #150
