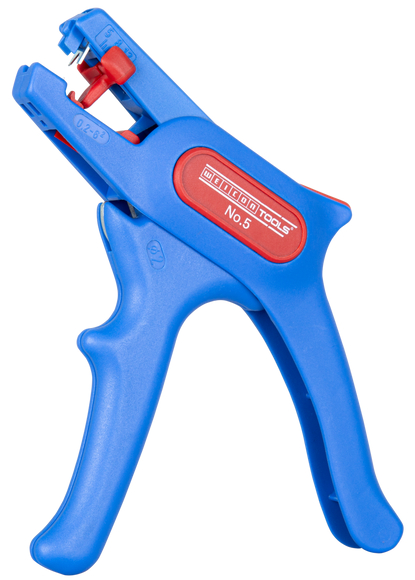

WEICON Wire Stripper no. 5

Key Features:

• Adjustable Length Stop: The stripper is equipped with an adjustable length stop ranging from 5.0 – 12.0 mm, which can be removed if needed. This feature allows for precise stripping of conductors ranging from 0.2 – 6.0 mm² (24 – 10 AWG).
• Automatic Conductor Scanning: The tool’s scanning system automatically adjusts to the conductor diameter, ensuring fast, precise stripping without damaging the inner conductor.
• Side Cutter Functionality: An integrated side cutter is included for cutting cables up to 2.0 mm in diameter. The cutter blade is replaceable, ensuring easy maintenance and long-term use.
• Ergonomics: Designed for comfort, the tool is lightweight (105 g) and features a smooth-running mechanism, making it effortless to use for extended periods.
• Durable Construction: The stripper is made from glass fiber-reinforced polyamide and is equipped with long-lasting knife steel blades from Solingen, ensuring durability and precision.
• Safety and Certification: TÜV-approved and carrying the GS seal for tested safety, the WEICON Wire Stripper No. 5 is developed with occupational safety and user convenience in mind.

Technical Data:

• Cable Type: Suitable for both flexible and solid conductors with PVC insulation.
• Application Range: 0.2 – 6.0 mm² (24 – 10 AWG).
• Inner Knife: Exchangeable.
• Added Value: Integrated side cutter (up to 2.0 mm Ø).
• Certification: TÜV NORD-tested for safety.
• Material: Glass fiber-reinforced polyamide.
• Length: 165.0 mm.
• Weight: 105.0 g.

The WEICON Wire Stripper No. 5 is a high-performance, reliable tool for efficient and precise wire stripping, designed for professionals who need versatility and precision in their daily tasks.
