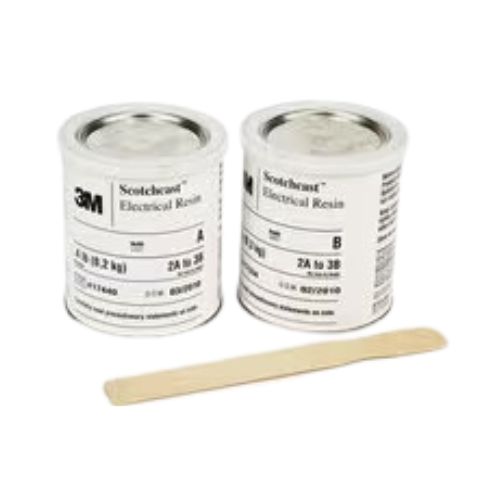

8546 3M SCOTCHCAST SLA-2

Name: 8546 3M SCOTCHCAST SLA-2
SKU: 29626
Availability: InStock

Categories: Coatings, Electrical Resins Tag: 3M

Prices Inclusive of all taxes

₹26,650 + Taxes

Base Polymer	Epoxy
Brands	3M™
Cure Method	Room
Cure Temperature	~23 Degree Celsius
Dielectric Strength (V/mil)	325 V/mil
Elongation	75 %
Flammability Rating	Not Self Extinguishing
Flexibility	Semi-flexible
Form	Liquid
Gel Time	22 min @ 250 °F (121 °C)
Hardness	68 Shore D
Mix Ratio	Wt 1:1 Vol (%) 46:54
Mixed Viscosity	Low (<10,000 cpi)
Product Type	Electrical Mastic Tapes for Equipment Manufacturing
Temperature Rating	Class B (<=130 deg C)
Thermal Conductivity	Low (<0.25 W/m-K)

68 Shore D hardness
8 lbs/kit
Has 48-hour gel time at 73.4 degrees F (23 degrees C)
Useful for coating coils, transformers, motors, modules, electrical and electronic components
Comes in reddish-brown color
1-gal capacity
Withstands a temperature range of 32 to 266 degrees F (0 to 130 degrees C)
Elongates 75% longer than its original size for easy insulation or wrapping
Chemical- and moisture-resistant
MIL-I-16923E, MIL-I-16923G Certified and RoHS 2011/65/EU Compliant
