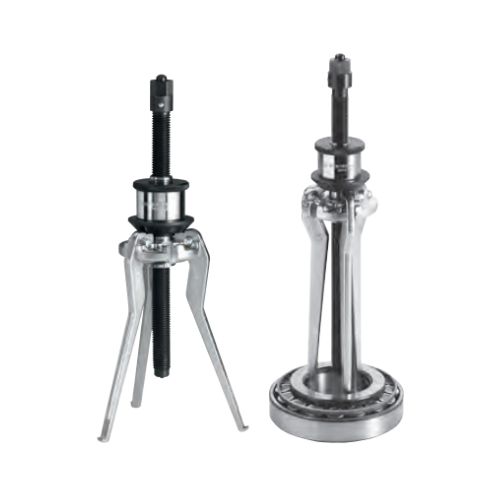

U.306N – Inside pullers

• Versatile: takes 2 or 3 legs. Converts into outside puller with
the legs U.306G1 + screw U.306-4 or legs U.306G10
+ screw U.306-2 or legs U.306G15 + screw U.306-3
(supplied fitted with its extension).
• Comfort: self-gripping legs by return spring. The puller stays in rolling position
even when not in tension.
• Safety: legs locked in position on the bearing using a knob. No risk for the puller
to escape from the bearing.
• Shear pin: the pin shears if torque limit is exceeded. Supplied with 2 spare pins.
• Set of 3 spare pins. Refer to spares table according to puller power.
• Adaptable puller accessories: slide hammer U.306M (direct attachment) and
beam U.40 (attached using ring and nut U.306A1 to be ordered separately).
