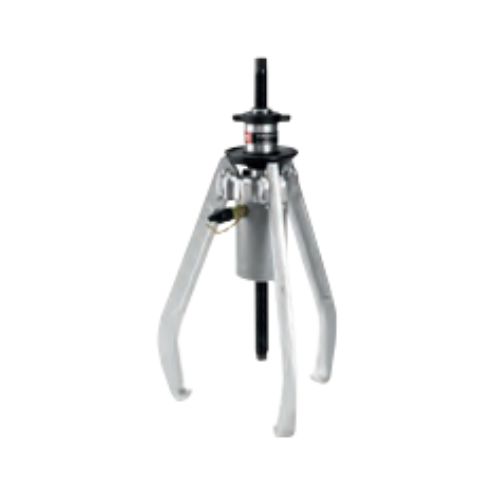

U.320H 20 T hydraulic outside puller

Name: U.320H 20 T hydraulic outside puller
SKU: 21910
Availability: InStock

Categories: Facom, FACOM PULLERS, HYDRAULIC 3-LEG PULLERS, HYDRAULIC PULLERS Tag: FACOM

U.320H 20 T hydraulic outside puller - Image 2

Prices Inclusive of all taxes

₹278,035 + Taxes

Excluding Delivery
Material Dispatch Subjected to Avaliability

Product Information

Technical Data Sheet

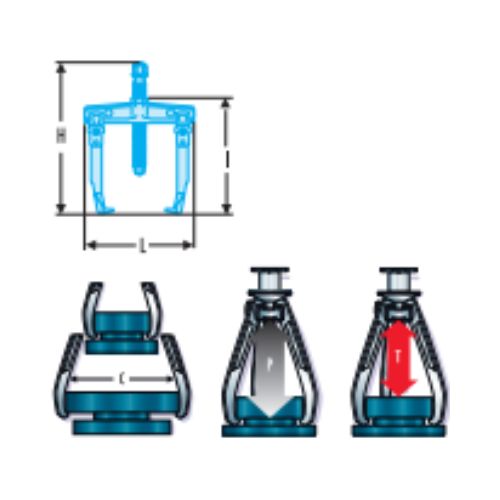

Technical Data Sheet

Weight	48.5 kg
Dimensions	25 × 74 cm
C mini – maxi [mm]	100 – 360
l [mm]	700
P maxi [mm]	265
Legs	U.320- 13A
Tonnes [t]	20
T [kN]	200
Jack	UWG.320
Screw Size	UWG.320H01
Screw Size [mm]	21

Product Information

• Comfort: self-gripping legs by return spring.
The puller stays in position on the bearing even when
not in tension.
• Safety: power is limited hydraulically by the pump.
No risk of breakage.
• 1 hollow jack UWG.320 fitted with the screw UWG.320H01.
• Use with 700-bar pump UWP.10MA.
• Mounting with 3 legs only with the hydraulic jack.
