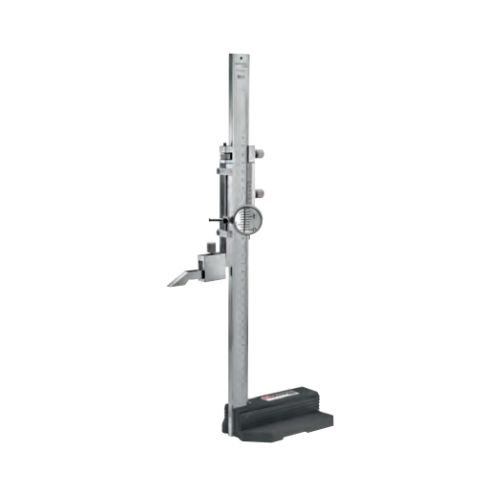

796B Precision surface gauge 300 mm – 1/50th

• Class 0.
• Precision 1/50th – 0.02 mm.
• Accuracy error: ± 28µm.
• Reliability error: ± 12µm.
• Stainless steel rule – mat
anti-reflection finish:
– Width: 25 mm.
– Hardness 40 HRc minimum.
• Maximum measurement capacity: 300 mm.
• Steel alloy scriber:
– Hardness 53 HRc minimum.
– Better scribing quality.
– 796B.04: serial no. A02 0001 –> march 01.
– 796C.04: serial no. A02 0001 –> A04 0001.
• Fine adjustment by return screw.
• Repositionable magnifying glass.
• Dial gauge base supplied in standard:
for dial gauge with Ø 8 mm rod (DIN 878 standard).
• Total dimensions: 455 mm x 90 mm.
• Supplied with compliance certificate.
