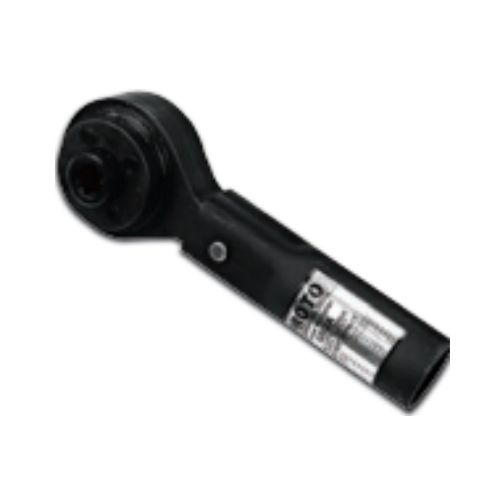

J6202A Reaction Arm Torque Multipliers

Name: J6202A Reaction Arm Torque Multipliers
SKU: 29886
Availability: InStock

Category: PROTO PRECISION TORQUE TOOLS Tag: PROTO

Prices Inclusive of all taxes

₹137,075 + Taxes

Excluding Delivery
Material Dispatch Subjected to Avaliability

Product Information

Technical Data Sheet

Technical Data Sheet

Input Drive (in)	1/2
Output Drive (in)	3/4
Max Rated Input	250 ft-lbs (339 Nm)
Max Rated Output	750 ft-lbs (1017 Nm)
Torque Ratio	1:3.0
Head Depth (in)	3-3/32
Head Length (in)	2-13/16
Handle Length (in)	5-1/4
Overall Length (in)	8-19/32
Weight (lbs)	4.00

Product Information

> Proto® Torque Multipliers provide overload protection with replaceable output square drives that are designed to twist off at 3%-10% over maximum output capacity.
> Standard torque accuracy is +/- 5% of reading.
> Reaction system: tubular reaction bar.
> Gear system: single stage planetary.
> Anti-backlash device: self-contained, 3 position.
> Includes extra male plug.
