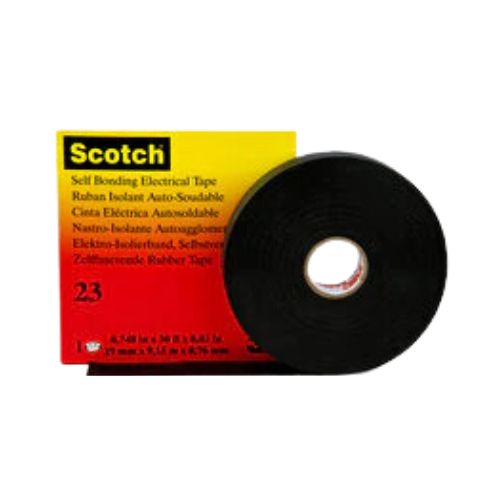

85469090 Insulation Tape 3M Scotch 23 19mm x 30′
₹12,495 + Taxes
- Excluding Delivery
- Material Dispatch Subjected to Avaliability
| Adhesive Type | Rubber, Non-Adhesive, Rubber Resin |
|---|---|
| Applications | Insulation, Sealing, Electrical Maintenan |
| Backing (Carrier) Material | Ethylene Propylene Rubber |
| Backing (Carrier) Thickness (Metric) | 0.76 mm |
| Dielectric Strength | 800 V/mil |
| Voltage Rating | 69 kV |
| Elongation at Break | 1000.0 % |
| Features | Vulcanizing, Self-sticking |
| Insulation Resistance | > 10^6 megohms |
| Maximum Operating Temperature (Celsius) | 90 ℃ |
| Minimum Operating Temperature (Celsius) | 0 ℃ |
| Product Colour | Black |
| Shelf Life | 5 Year |
| Tape Grade | Professional |
| Tensile Strength (metric) | 55 Kilopascal |
| Total Tape Thickness without Liner (metric) | 0.76 mm, 0.762 mm |
- Rubber resin provides excellent adherence to irregular surfaces
- Primary electrical insulation for splicing cable from 600V to 69 kV on all solid dielectric cables
- Suitable for jacketing high-voltage splices and terminations
- Available in narrow and wide widths (0.75 in.–2 in.)
- Temperature rated for continuous adhesion to 194°F (90°C)
- Withstands temperatures up to 194 degrees F (90 degrees C)
- Special polyester liner
- ASTM Approved & RoHS 2002/65/EC Compliant
